DATRON Axis4
Rotary axis for multiple side milling
Expand your DATRON milling capabilities with the Axis4 rotary axis – the dynamic and precise 4th axis solution for multi-sided machining and cylindrical engraving. Designed and manufactured by DATRON, this powerful add-on enables complex 4-axis operations in a single setup, reducing cycle times and increasing precision. Perfectly integrated into your DATRON system, Axis4 delivers high dynamics and flexibility with minimal setup effort.
DATRON Axis4
Product Features
- For more possibilities:

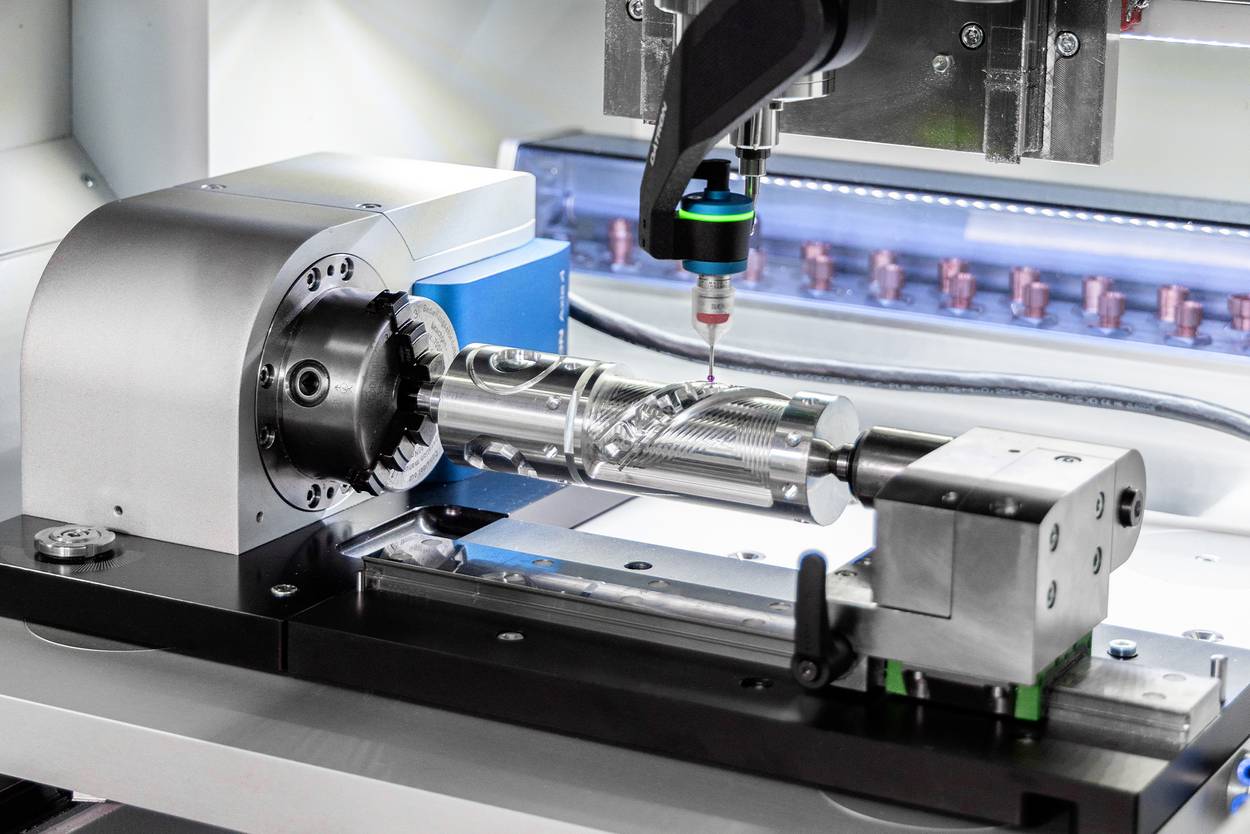

- Multisided machining, circular engraving
- Dynamics and precision for outstanding results
- Flexible use thanks to optional accessories: three-jaw chuck, centering vise, tailstock
- Precise alignment with the XYZ sensor (optional)
- Easy positioning on the table thanks to module clamping technology
- Easy change between 3- and 4-axis machine
- Plug & Play connection in the work area
Technical Data
| Item no. | 0A03704I | ||
| Item no. preparation* | 0A03704K | 0A03704F | 0A03704G |
| Basic body dimensions (L × W × H) | 109 × 244 × 145 mm | ||
| Peak height | max. 55 mm (deviating when using optional accessories) | ||
| Peak width | max. 210 mm / 1,210 mm (depending on DATRON machine type and accessories) | ||
| Drive | 200 W AC-Servo with toothed belt, multi-turn absolute value encoder | ||
| Speed | max. 60 rpm | ||
| Resolution | < 0.0001° | ||
| Compatibility | DATRON neo (Pro) | DATRON M8Cube, MLCube | DATRON MXCube |
| Scope of delivery | DATRON Axis4 rotary axis on module clamping plate *Machine preparation is not included and must be purchased separately; it is essential for commissioning | ||
DATRON AXIS4
Optional Accessories
Rotary axis with three-jaw chuck
- Dimensions (D x H): 106 mm x 63.5 mm
- Tip height: 55 - 75 mm
- Clamping range (jaws tapered to the inside): 2 - 80 mm
- Clamping range (jaws tapered to the outside): 25 - 78 mm
- Inner borehole (D x H): 19 mm x 40 mm
- Clamping force (max.): 13 kN
- Tightening torque (max.): 30 Nm
Rotary axis with centric clamping device
- Dimensions (D x H): 106 mm x 80 mm
- Tip height: 65 - 75 mm
- Clamping range: 0 - 65 mm
- Jaw width: 46 mm
- Clamping force (max.): 6 kN
- Tightening torque (max.): 30 Nm
Rotary axis with tailstock
- Dimensions (L x W x H): 329 mm x 160 mm x 98 mm
- Tip height (max.): 55 mm
- Tip width (max.): 210 mm
- Seat: MK2
- Centring tip diameter (max.): 65 mm
