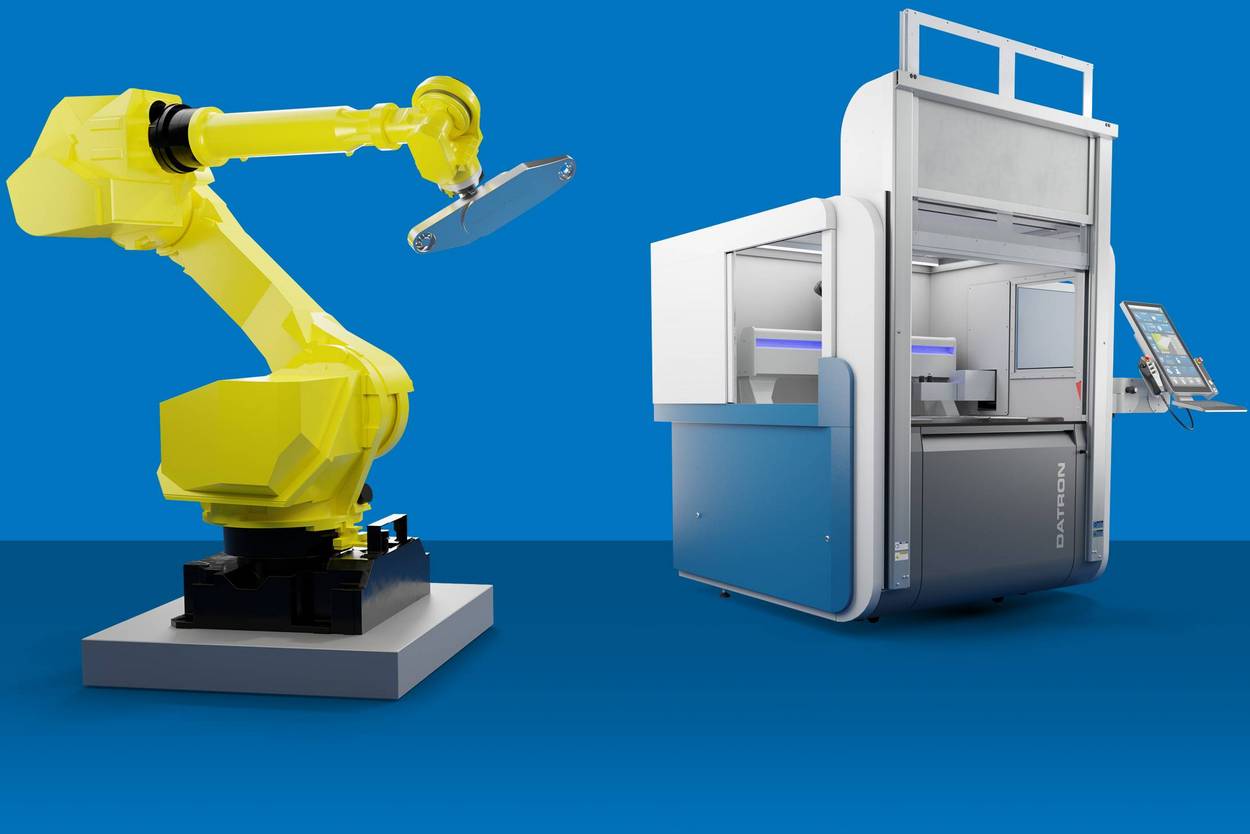

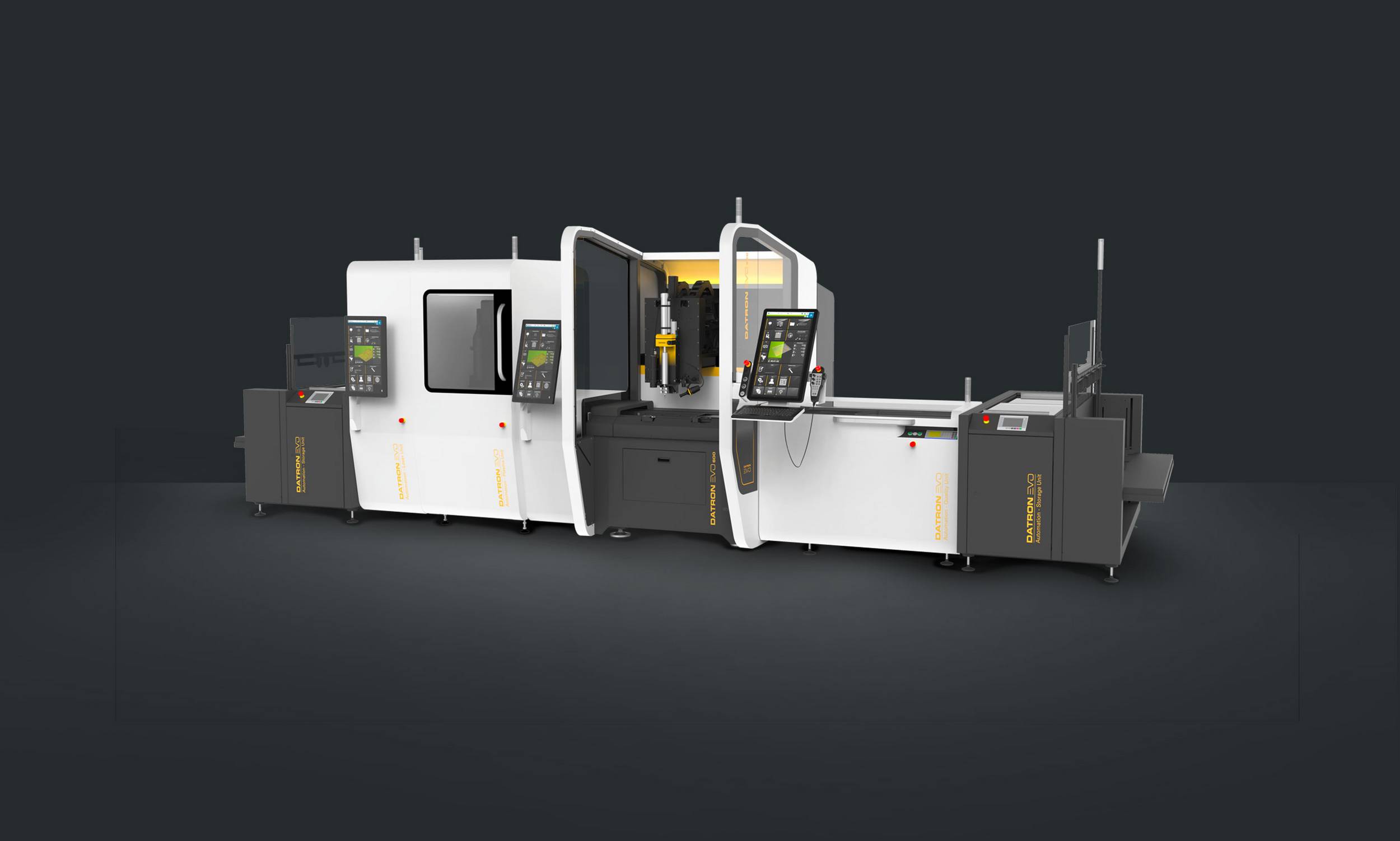

The smart DATRON automation portfolio offers efficient and customized solutions for future-oriented production purposes. Automatic front and side doors, interfaces to internal hardware, external automation and also software interfaces and solutions are add-ons to DATRON machine systems with DATRON next Control for state-of-the-art production processes and complete the product range.

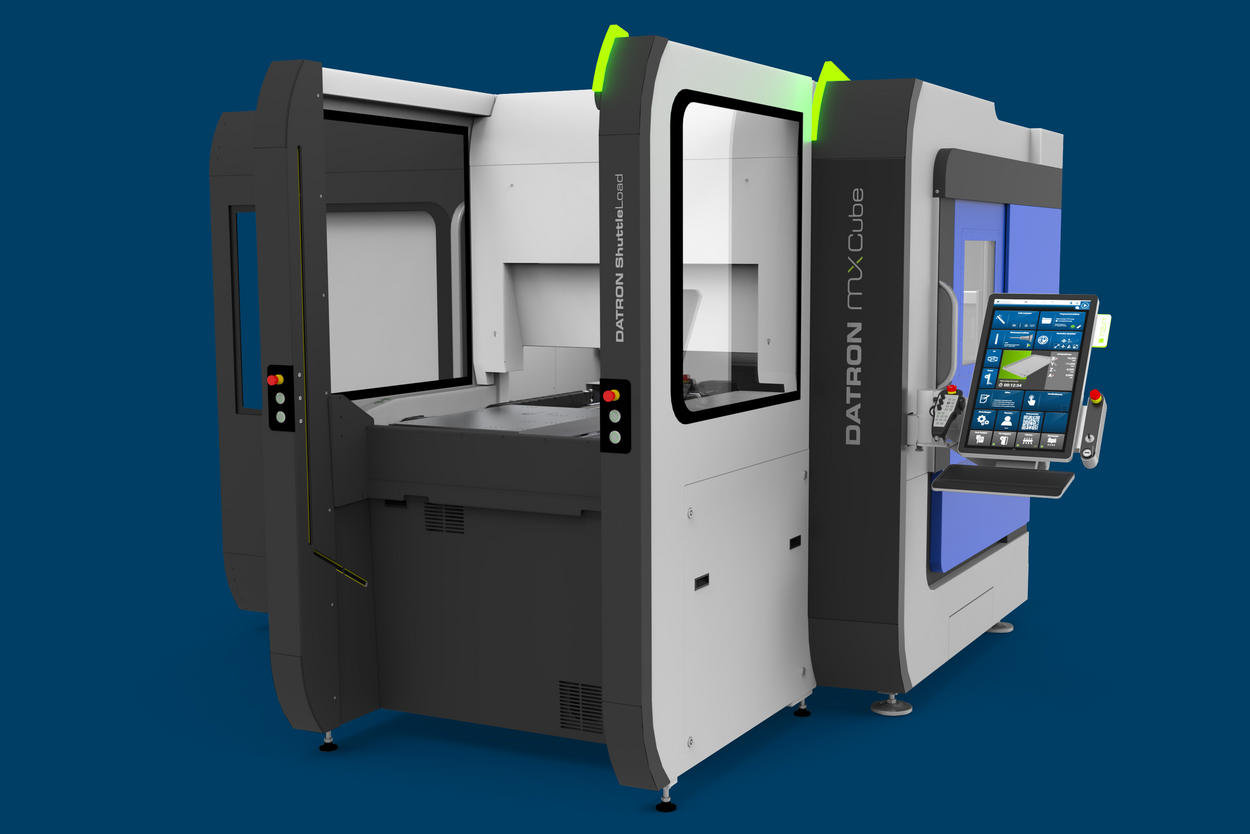

ShuttleLoad
Maximum efficiency and cost-effectiveness in production with simultaneous loading: make the best of your spindle run time by adding the optional DATRON ShuttleLoad to your DATRON MXCube. With the optional DATRON ShuttleLoad extension, the two independently controlled quick change tables move into and out of the workspace, enabling simultanoeous loading of the machine. Ideal for small to medium-sized workpieces with reduced chip volume.
Technical Data
| DATRON ShuttleLoad |
|---|---|
| Dimensions (W xDxH) | 1310 mm x 1220 mm x 2200 mm |
| Single table size (XxY) | 499 mm x 699 mm |
| Table height | 1.04 m |
| Width of the working area | 1.06 m |
| Proximity to part | 0.11 m |
| Usable height | 120 mm (optionally additional 60 mm portal heightening) |
| Table speed | 40 m/min |
| Clamping pressure | 0–6 bar |
| Table changing time | 6 s |
| Aluminium changing table | Integrated conical thread (4 x 7 per table integrated vacuum and compressed air supply) |
| Maximum table load | 70 kg |
Pneumatic clamping device | Optional (e.g. 6x pneumatic centric clamps per table, for base body width 140mm) |
| Weight | 900 kg |
| Vacuum | Optional |
| Pneumatics | Optional |
| Pneumatic clamping | Optional (e.g. 6 x pneumatic centric clamping vices per table, with base body width 140 mm) |
| I/O interface | Optional |
| Brackets for suction hose | Optional |

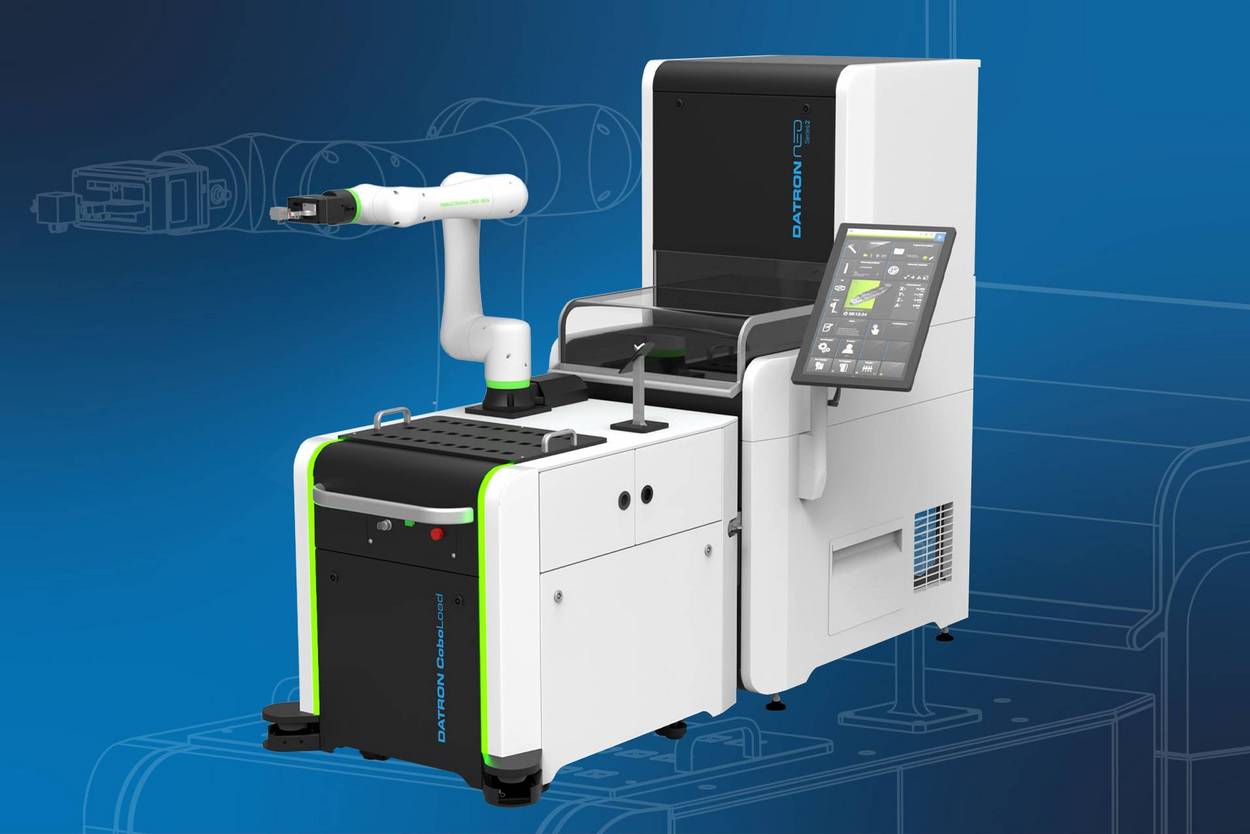

CoboLoad
Expand your production capacity without additional labor costs. While the DATRON CoboLoad takes care of the loading and unloading of the machine, you'll have the capacity for more demanding tasks. The quick docking systems enables an easy switch between manual prototype manufacturing and automated serial production. Simple plug and play and intuitive operation guarantee an effortless entry into automation.
Technical Data
| DATRON CoboLoad |
|---|---|
| Dimensions (W x L) | 770 mm x 1,100 mm |
| Connected load | 220V, 16A |
| Lifting load, including gripper | 5 kg |
| Range | 900 mm |
| Storage area for workpiece | 600 mm x 400 mm |
| I/O interface | 8 standard digital I/Os, optionally expandable |
| Interfaces | Quick docking system - mechanical, pneumatic, electric |
| Customized components | Gripper, workpiece tray, clamping points |
| Workspace safety | Safety zones via laser scanner |

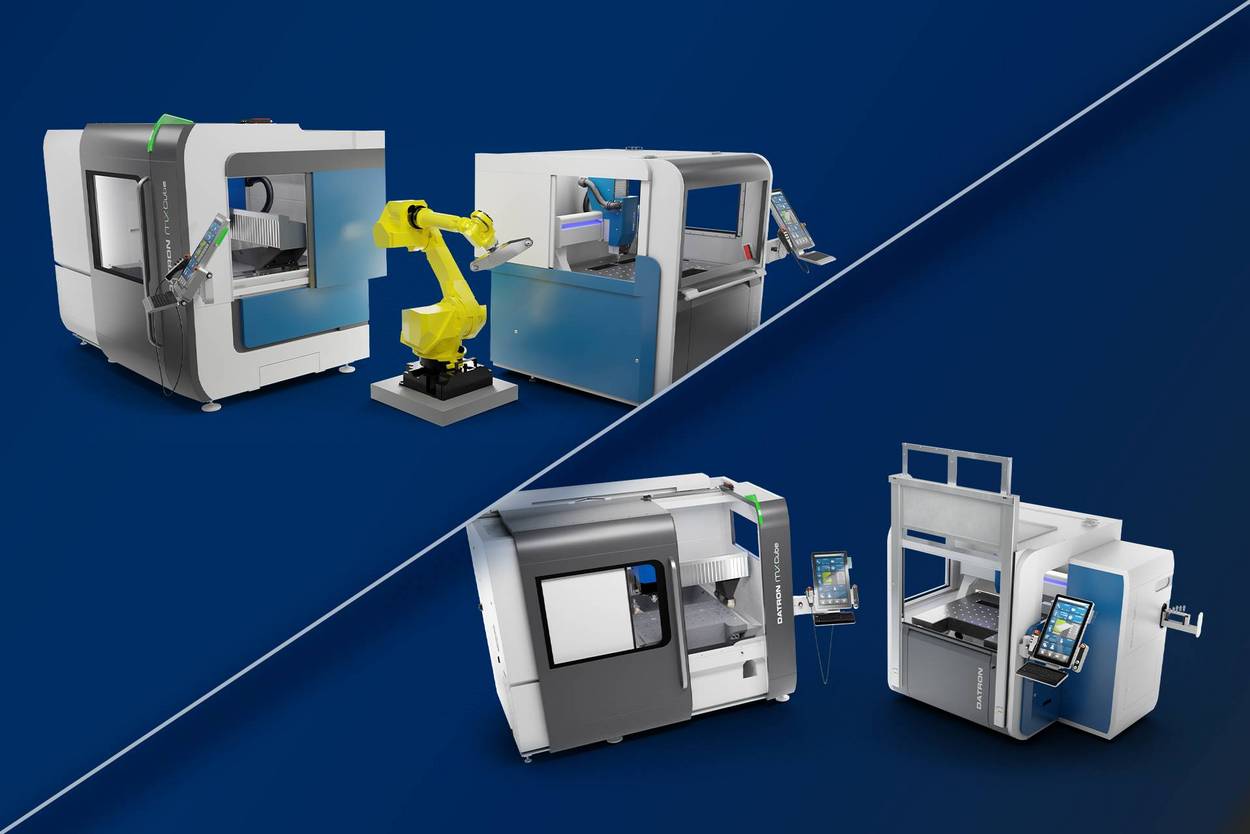

DATRON Automatic doors
The automatically controlled front and side doors enable fast loading and unloading of the machine through external automation connections.
Automatic side doors*
| Opening width | Opening height | Opening time | |
|---|---|---|---|
DATRON M8Cube | 720 mm | 738 mm | approx. 1.5 s |
DATRON MLCube | 1.020 mm | 738 mm | approx. 1.5 s |
DATRON MXCube | 724 mm | 768 mm | approx. 2.5 s |
*Side doors only suitable for automatic loading
Automatic front doors*
| Opening width | Opening height | Opening time |
|---|---|---|---|
DATRON M8Cube | 1.185 mm | 967 mm | approx. 3 s |
DATRON MLCube | 1.865 mm | 967 mm | approx. 3 s |
DATRON MXCube | 1.126 mm | nach oben offen | approx. 7 s |
| *Front doors suitable for manual loading and automatic loading | |||
Digital I/O module incl. extended programming functionality in DATRON next
The digital I/O module, installed in the machine control cabinet, is used to connect external hardware inside the machine, such as automatic clamping devices.

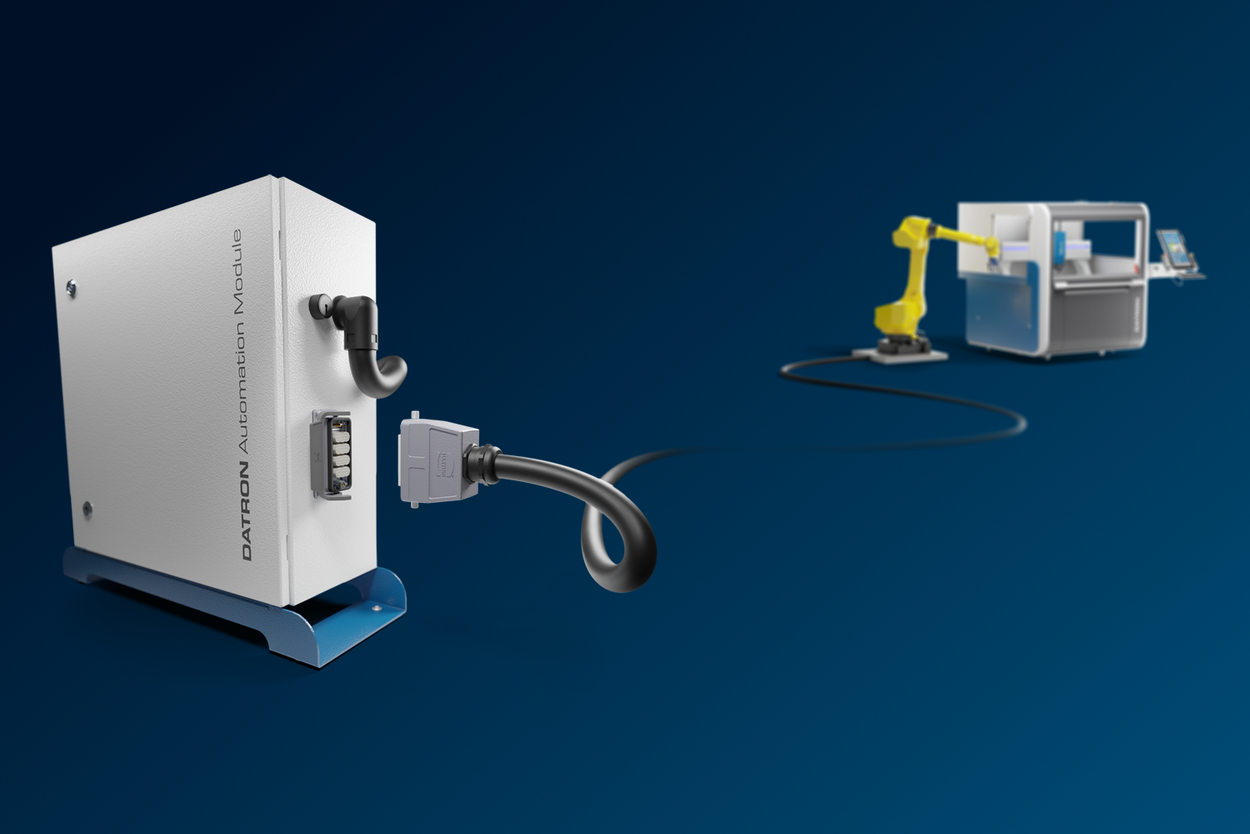

DATRON Automation Modules incl. extended programming functionality in DATRON next
DATRON Automation Modules are used to connect external hardware such as a robot via digital inputs and outputs and to integrate the automation into the safety circuit of the CNC machine.
The external hardware on the machine can be controlled by a program that runs in its own runtime environment within the milling machine control.
DATRON next software options for automation solutions
DATRON next REST API
Basic variant - Allows access to operating data of the machine.
Automation variant - Enables programs to be executed, paused or aborted, and user-defi ned variables to be read and written by third-party software.
