Precision Meets Flexibility – for Your 5-axis Machining
The DATRON Axis5 expands your machine with a compact, ultra-precise rotary swivel unit for tilted and simultaneous 5-axis machining. It mounts directly into the cut-out section of your DATRON machine using conical centering bushes, integrating seamlessly into your machining environment. Thanks to its compact design, the table can also be used for 3-axis machining—delivering maximum productivity with minimal space requirements.
Technical Data
The DATRON Axis5 expands DATRON CNC systems with a high-precision 4th and 5th axis and enables complex multi-sided machining in just one clamping. It impresses with its compact design, high dynamics and exact positioning. The following table provides an overview of the most important technical data and performance features.
Technical Data
| DATRON Axis5 Basic | DATRON Axis5 Automation | DATRON Axis5 Basic | DATRON Axis5 Automation | |
| Item no. | 0A01131J | 0A01131K | 0A01131J | 0A01131K |
| Compatibility | DATRON M8Cube | DATRON MXCube | ||
| Item no. preparation* | 0A01130J | 0A01130K | ||
| Interface | SCHUNK NSE-M mini 90-V1 | SCHUNK NSE mini 90-V1 | SCHUNK NSE-M mini 90-V1 | SCHUNK NSE mini 90-V1 |
| Workpiece weight (max.) | 13 kg (incl. clamping devices) | |||
| Drive | AC-Servomotor - Mavilor BLS 072 EQN 1125, free from backlash/pre-clamped worm gear | |||
| Bearing tilting moment | 1200 Nm | |||
| Bearing axial load | 6 kN | |||
| Drive feed moment | 70 Nm | |||

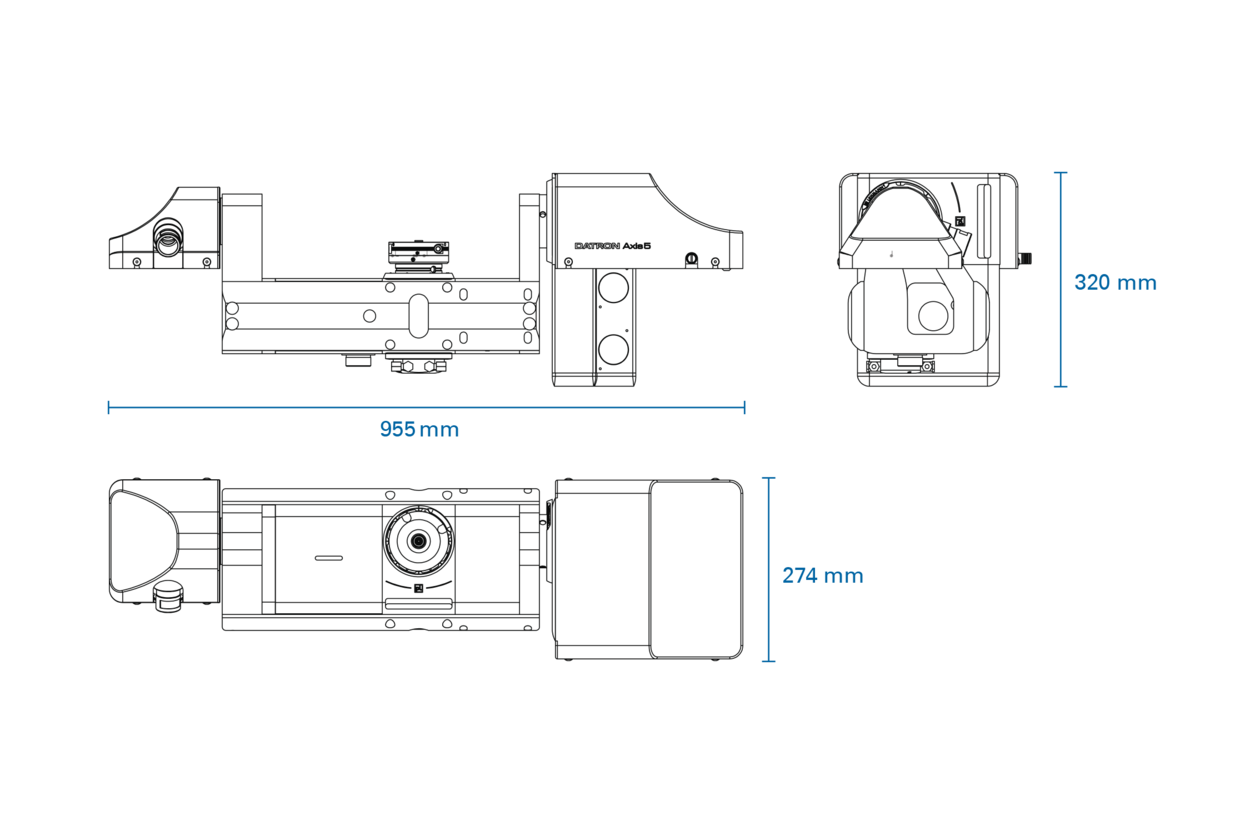

| Dimensions (X × Y × Z) | 955 mm × 274 mm × 320 mm | |||
| Weight | approx. 104 kg | |||
| System requirement | DATRON next Software release 3.6 or later | |||
| Scope of delivery | Plug & Produce-compatible 4th and 5th Axis with manual or pneumatic quick change pallet system, calibration ball to determine zero point *machine preparation must be purchased separately | |||
Technical Data
| A-axis | C-axis | |
| Cycle time 90° | 0.6 s | 0.4 s |
| Positioning accuracy | ±35 arcsec | ±20 arcsec |
| Repeat accuracy | ±3 arcsec | ±5 arcsec |
| Speed | 33 rpm | 65 rpm |
| Radial run-out | – | < 0.01 mm |
| Axial run-out | – | < 0.01 mm |
| Rotary range | −5° to +100° | 360° (infinite) |
Degrees of Freedom
Precision in Motion – Advanced 5-Axis Machining

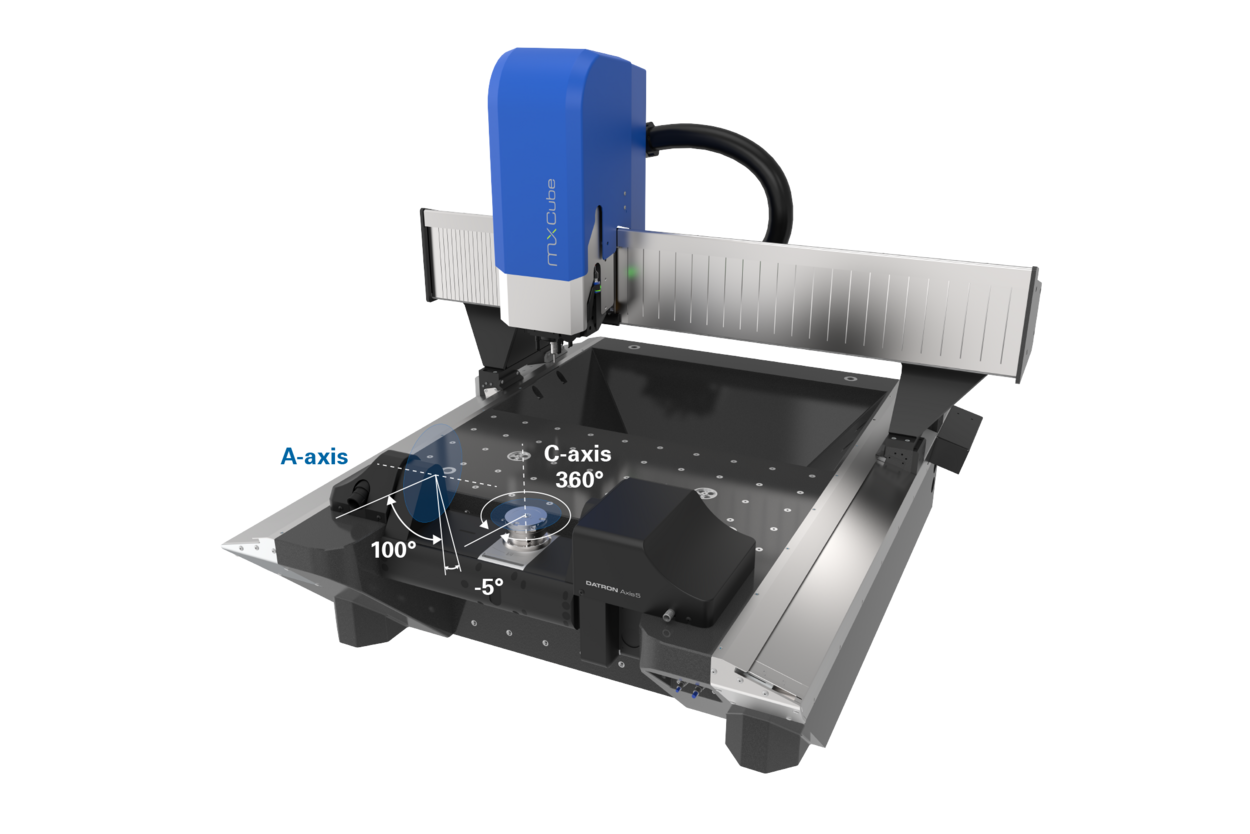

The DATRON Axis5 offers full flexibility through two additional axes:
- C-axis: 360° rotation for complete part accessibility
- A-axis: Tilt range from -5° to +100° for angled machining
These extended degrees of freedom enable the precise milling of complex contours, undercuts, and inclined surfaces in a single setup. No reclamping is required – ensuring maximum repeatability and process reliability for demanding multi-sided applications.
Maximum Part Size for Simultaneous 5-Axis Machining
Efficient Use of Space – Even for Complex Parts

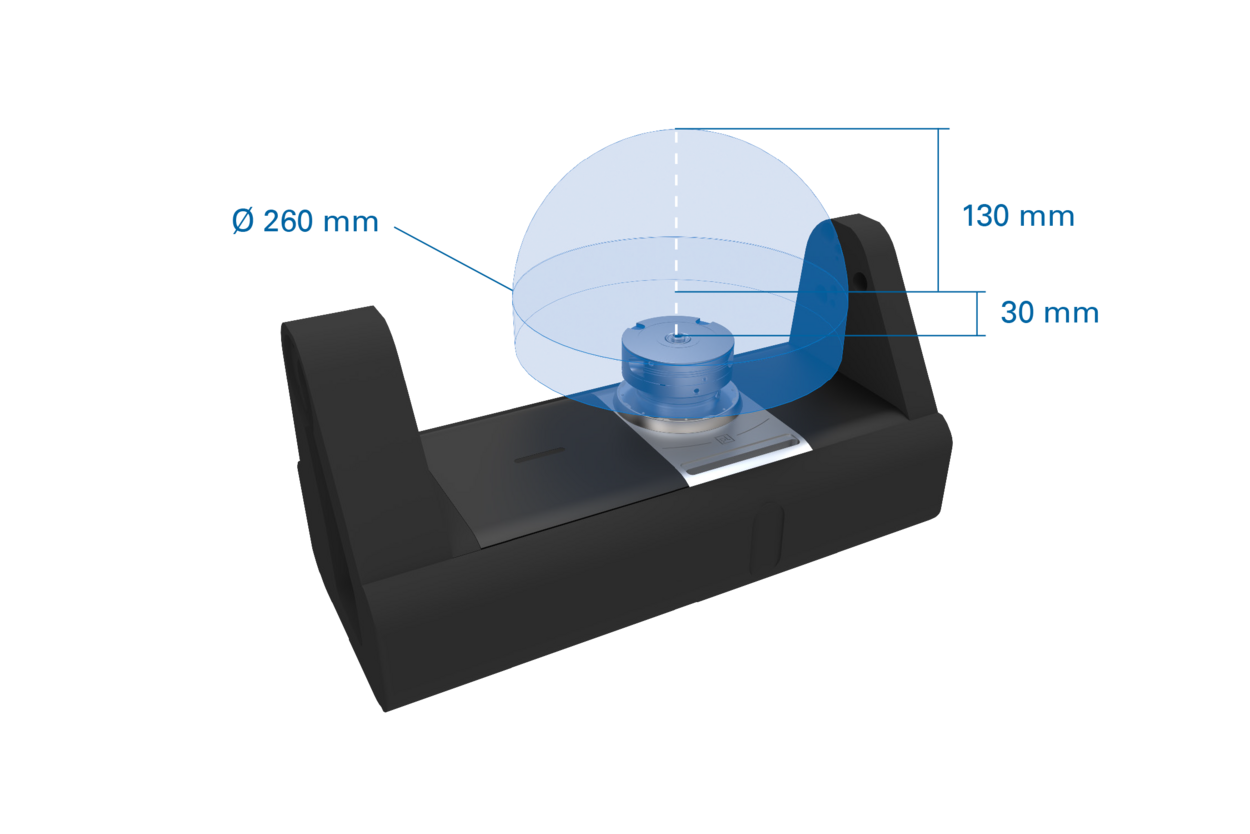

The DATRON Axis5 enables the simultaneous machining of parts with the following maximum dimensions:
-
At the base: a cylinder with Ø 260 mm and 30 mm height.
-
Above that: a hemisphere with a radius of 130 mm.
This makes the DATRON Axis5 a compact yet highly capable solution for precise milling of small to medium-sized workpieces, especially in industries like medical technology, electronics, or precision tooling.
Quick Change Clamping Devices
Quick-change clamping devices allow workpieces to be secured on the DATRON Axis5 with precision, speed, and repeat accuracy. They minimize setup time while ensuring maximum reliability and consistent clamping accuracy—ideal for demanding production processes with the highest quality requirements.
DATRON Micro Vice (tall chucks)
- Jaw width: 70 mm
- Dimensions incl. jaws (L x W x H): 100 mm x 70 mm x 44 mm
- Clamping range: 31 - 77 mm
- Clamping force (max.): 16 kN
- Max. torque: 50 Nm
*Image shows Clamping device without spacer plate
DATRON Micro Vice (small chucks)
- Jaw width: 70 mm
- Dimensions incl. jaws and spacer plate (L x W x H): 100 mm x 70 mm x 64 mm
- Clamping range: 7 - 53 mm
- Clamping force (max.): 16 kN
- Max. torque: 50 Nm
*Image shows Clamping device with spacer plate
DATRON Vario Vice 150
- Jaw width: 70/120/200 mm (depending on clamping jaw)
- Dimensions incl. jaws (L x W x H): 150 mm x 120.4 mm x 48 mm
- Clamping range: 0 - 50 mm (+ milled recess in jaw max. 120 mm)
- Clamping force (max.): 5 kN
- Max. torque: 15 Nm
